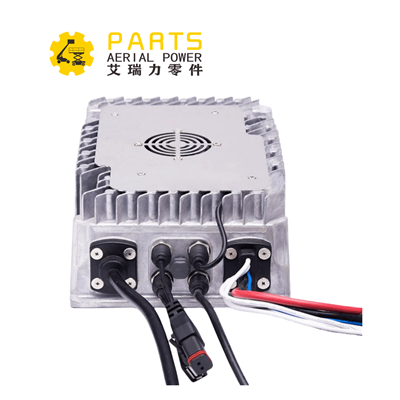

Portable Battery Charger EPC601-2430 800W
Qauv: EPC601-2430 EPC601-2430 Cov Series chargers no txhim khu kev qha thiab pheej yig them cov kev daws teeb meem rau cov hmoov lead-acid (FLOOD, AGM, GEL) thiab lithium-ion roj teeb.Cov khoom siv ntau yam no feem ntau siv ntau yam. daim ntawv thov suav nrog txiab txiab, tsheb golf, tsheb saib xyuas thiab khoom siv tu. Nws muab kev txhim khu kev qha thiab muaj txiaj ntsig zoo rau cov khoom siv zoo li no. Series Specifications: AC Input Product Yam ntxwv Muaj kev tsis ntseeg thov hu rau peb!Peb kev sib cuag ncaj qha raws li hauv qab no, Email: sales@hunan-aerial-power.com WeChat /Phone: 0086-18684738272 WhatsApp : +85296766531
Hauj lwm lawm
Qauv:EPC 601-2430
Cov Series chargers no txhim khu kev qha thiab pheej yig them cov kev daws teeb meem rau txhuas-acid (FLOOD, AGM, GEL) thiab lithium-ion roj teeb.
Lub charger muaj ntau yam no feem ntau yog siv rau ntau yam kev siv xws li nqa txiab, tsheb golf, tsheb saib xyuas thiab khoom siv tu. Nws muab kev txhim khu kev qha thiab muaj txiaj ntsig zoo rau cov khoom siv zoo li no.
EPC 601-2430 Series Specifications:
| DC tso zis | 24V30A |
| Maximum DC tso zis voltage | 34V |
| Maximum DC tso zis tam sim no | 30A |
| Cov zis siab tshaj plaws | 800W |
| Yam tsawg kawg pib Voltage | 3V |
| Maximum xauv tam sim no | 10A |
| Siv tau hom roj teeb | Lead acid (dej, AGM, GEL), lithium-ion |
| Rov qab Polarity Protection | YOG |
| Kev tiv thaiv luv luv | YOG |
AC Input
| AC Input Voltage Ntau | 85V-265V |
| Nominal AC input voltage | 100-240VAC |
| Nominal AC Input zaus | 50/60Hz |
| Maximum AC Input Tam sim no | 10A |
| Hwj chim Factor | >0.98 nyob rau hauv hnyav load |
| Kev tswj hwm | |
| Kev ua tau zoo | MAX 92% |
| Kev nyab xeeb | CE, CB, ETL |
| Waterproof | IP66 |
| Neeg kho tshuab | |
| Qhov ntev | 218 × 152 × 83mm |
| Qhov hnyav | 2.9KG ib |
| AC Input Connector |
IEC 320-C14 |
| DC Output Connector | M8 liab thiab dub hlau nrog pob ntseg |
| Txias |
Ntuj tshav kub dissipation |
| Ib puag ncig | |
| Ua haujlwm kub | -30 degree -+65 degree (lub zog yuav raug txo yog tias qhov kub thiab txias ntawm lub tshuab siab dhau) |
| Cia Kub |
-40 degree -+70 degree |
Cov yam ntxwv ntawm cov khoom
| 1. CAN BUS, charger tuaj yeem xa cov kev ua haujlwm tsis zoo rau kev tswj hwm ntawm CAN BUS. |
| 2. Siv lub charger cov nyees khawm hloov ntawm hom nkhaus sib txawv, suav nrog hom kho. Cov yam ntxwv no tso cai rau cov neeg siv tau yooj yim hloov qhov chaw nkhaus los ntawm kev nias lub pob ntawm lub charger. Txaus siab rau qhov yooj yim ntawm kev hloov cov nkhaus thiab nkag mus rau kev kho hom nrog ib tus kais xwb. |
| 3. Cov ntsuas digital: Nws tuaj yeem tso saib AC voltage, roj teeb voltage, them tam sim no, thiab lub peev xwm them. |
| 4. Kev tiv thaiv kev tawg: Nws tuaj yeem tiv thaiv txog li 420V AC voltage yam tsis muaj kev puas tsuaj. |
| 5. USB Cov ntaub ntawv nco muaj nuj nqi. Cov neeg siv tuaj yeem hloov kho qhov kev hloov kho tshiab, hloov pauv qhov nkhaus, rub tawm cov ntaub ntawv them nyiaj thiab lwm yam haujlwm nrog USB disk los ntawm USB port.5. USB Data Memory Function. Cov neeg siv tuaj yeem hloov kho qhov kev hloov kho tshiab, hloov pauv qhov nkhaus, rub tawm cov ntaub ntawv them nyiaj thiab lwm yam haujlwm nrog USB disk los ntawm USB chaw nres nkoj. |
| 6. IP66 tiv thaiv. |
Muaj kev tsis ntseeg thov hu rau peb!Peb kev sib cuag ncaj qha raws li hauv qab no,
Email: sales@hunan-aerial-power.com
WeChat / Xov tooj:0086-18684738272
WhatsApp pawg: +85296766531
